Virtual Assembly

Bring Together 3D Models for Seamless Virtual Assembly

Integrate 3D components from different applications into a unified virtual assembly, enabling real-time adjustments and cross-functional reviews without data conversion. Perfect for assembly validation.

An Advanced Tool for Virtual Assembly Collaboration

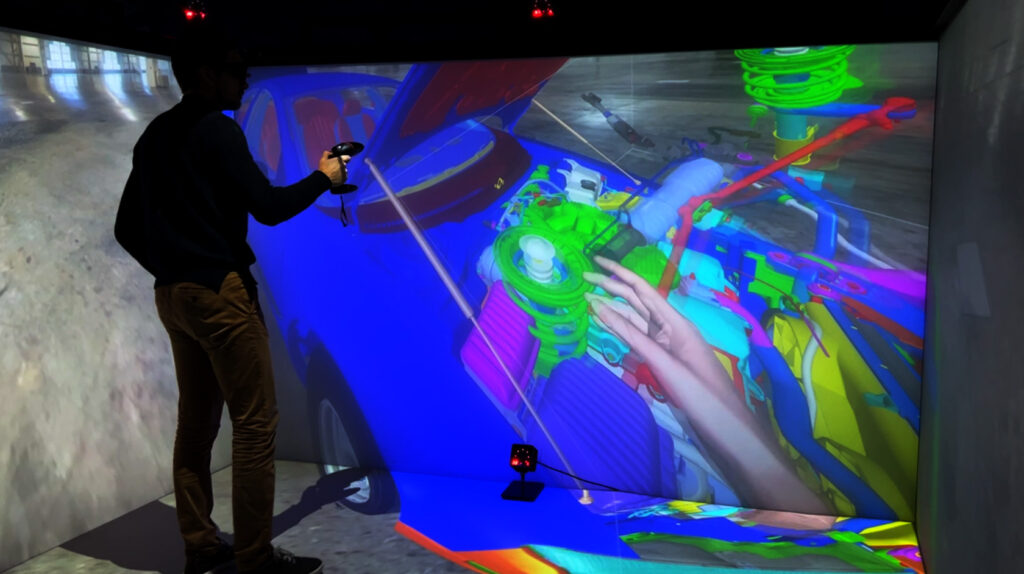

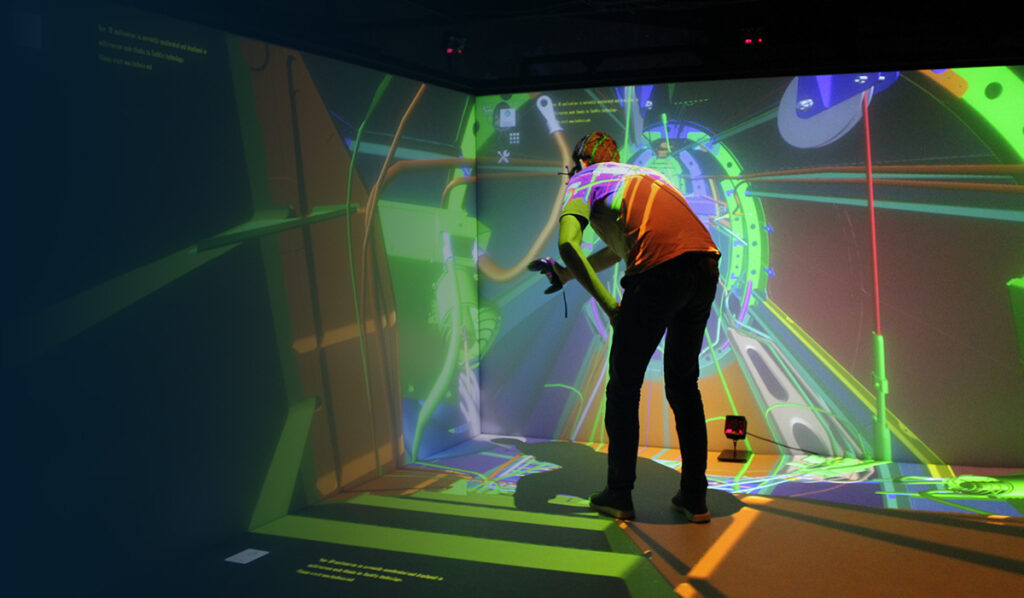

TechViz Virtual Assembly brings 3D models from distinct CAD and simulation tools together, allowing teams across departments to view, manipulate, and validate assembly prototypes collaboratively in VR. The process accommodates diverse applications, like Dassault Systèmes CATIA, Siemens NX, and Autodesk Inventor, ensuring fluid integration and accurate VR visualization.

No data conversion

Unified assembly scene in VR

Synchronizes updates across applications

Key Features

How Virtual Assembly Works

Compatible with TechViz XL, Virtual Assembly operates on standard Windows/Linux workstations and displays across VR devices like HTC Vive and Oculus Rift.

Use Cases

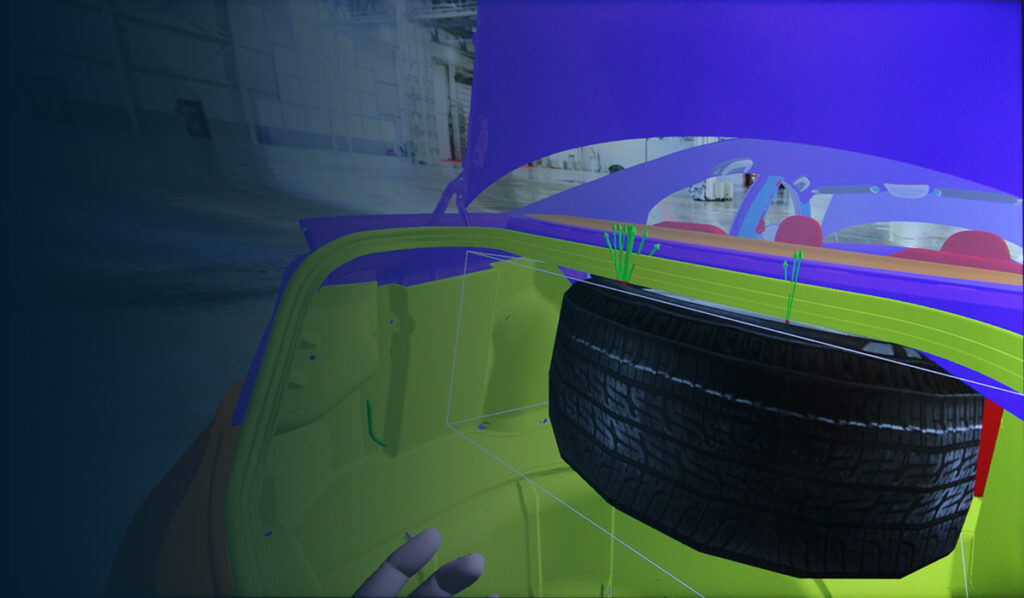

Analyze assembly interactions in real time

Validate mechanical fit and tolerance in automotive assemblies

Simulate complex manufacturing workflows

Why Choose Virtual Assembly?

Streamline validation, enhance cross-functional teamwork, and see real-time changes in VR with no conversion requirements. Virtual Assembly is ideal for rapid, accurate 3D assembly insights.
